Alley Arm Braces

Contact on whatsapp

Description

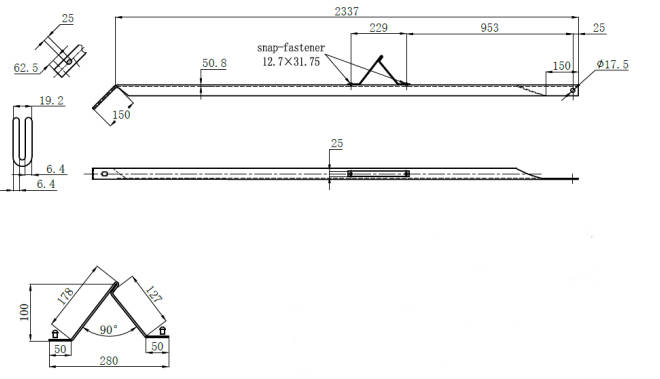

Technical Parameters and Drawings



HE Code
CBA2337



Notes:

1. Tolerance: ±5%
2. All dimensions are in mm.

3. Material: carbon steel
4. Finish: hot dip galvanized

5. All the screw thread is based on BS.
6. Customized sizes are available at request.






Product Description:

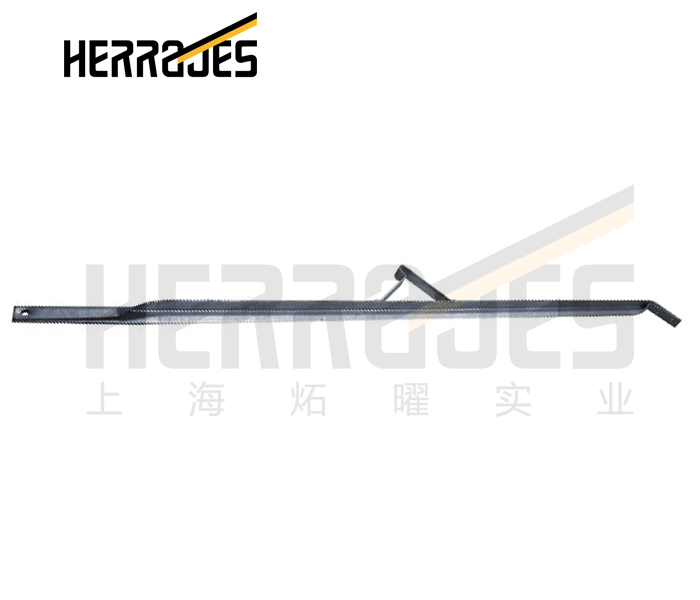

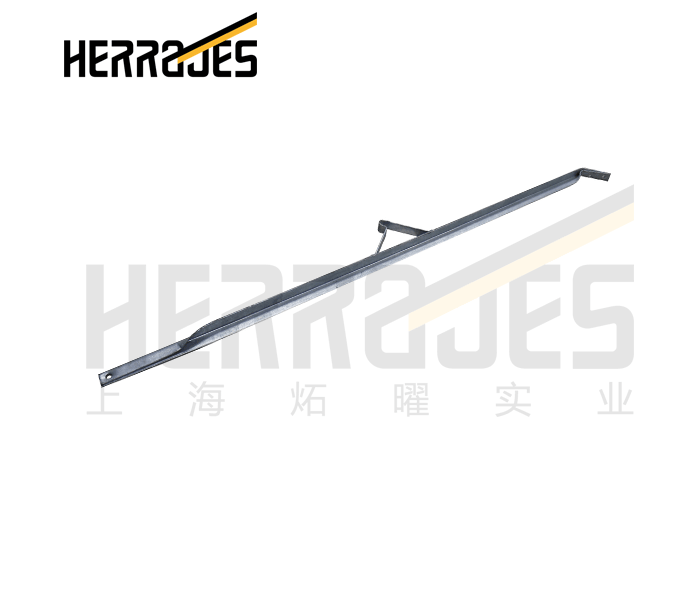

Alley arms braces are produced for side arm construction, used to support distribution conductors on one side of pole.
Arms are assembled with lineman’s steps.
Alley arms braces are hot formed with equal leg angle.


Material steel is hot dip galvanized to ASTM A153.
The above are typical only, please consult Shanghai Herrajes for further information.


Product Details:
Name: alley arms, alley arm braces, angle V braces
HS code: 7326
Model: CSA
Package: bulk packing; palletized; as required
Trademark: HE, as required
Origin: China
Raw material: carbon steel Q235
Finish: HDG
ODM&OEM service: yes
Sample: available, FOC
Payment term: T/T, 30% prepayment and 70% balance against B/L
Certificate: ISO
Delivery time: 20-40 days
MOQ: 500kgs
Export term: FOB; CIF
Production capacity pcs/day: 2000
Minimum tensile strength lbs.: 7000
Overall length mm: 2337
Pole mounting hole dia. mm: 17.5(11/16”)

Crossarm mounting hole dia. mm: 17.5(11/16”)

Steel size mm: 50.8×50.8×6.4(2”x2”x1/4”)
Weight kg: 8.07
