Chain Shakles

Description

Technical Parameters and Drawings

HE Code	Wt.
CS16	0.6

Notes:

1. Tolerance: ±5%

2. All dimensions are in MM except for marked.

3. Customized sizes are available at request.

Product Description:

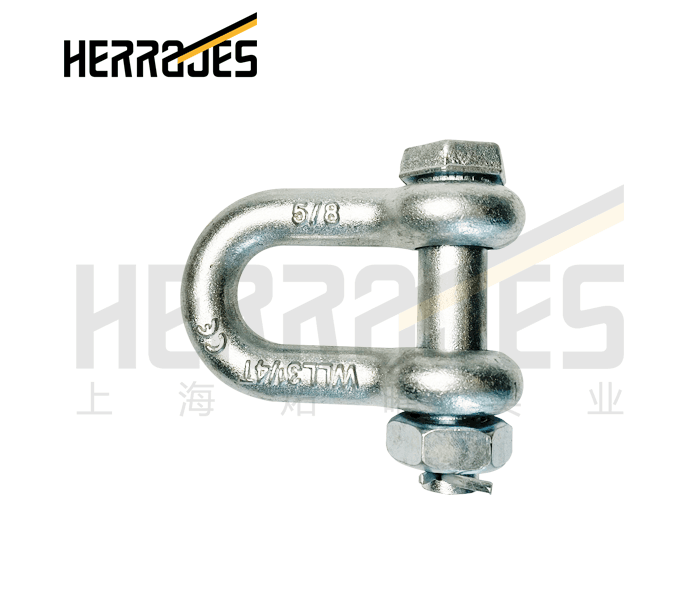

Chain shackles are produced to attach suspension insulators or anchors to suspension and tension towers, yokes or double arming plates.

Openings are enlarged to permit the use of more fittings.

Casted iron products, constructed of high quality steel ASTM A536 hot dip galvanized to ASTM A-153, assembled with split pin.

Shackles are assembled with button head pin or rivet or cotter bolt.

The above are typical only, please consult Shanghai Herrajes for further information.

Product Details:

Name: chain shackles, D-shackles, binder chain, chain link assembly

HS code: 7326901900

Model:

Package: bulk packing; palletized; as required

Trademark: HE, as required

Origin: China

Raw material: ASTM A536

Finish: hot dip galvanized

ODM&OEM service: yes

Sample: available, FOC

Payment term: T/T, 30% prepayment and 70% balance against B/L

Certificate: ISO

Delivery time: 20-40 days

MOQ: 500kgs

Export term: FOB; CIF

Production capacity pcs/day: 2000

Strength tensile kgf: 5000

Bolt dia. MM: 16, etc.

Wt. kg: 0.6
