Description
Technical Parameters and Drawings
HE Code | Dimensions | Wt. | ||
Dia. | Eye size. | Length under eyes | kg | |
ES3/8 | 3/8″ | 7/8″×1 1/4“ | 3” | 0.100 |
ES1/2 | 1/2“ | 1 1/4×1 5/8” | 6“ | 0.295 |
ES5/8 | 5/8” | 1 1/2”×2“ | 6 3/4” | 0.472 |
ES3/4 | 3/4“ | 1 1/2”×2“ | 6 3/4” | 0.617 |
1. Tolerance: ±5% | |||||||||
2. All dimensions are in inch.
3. Material: carbon steel |
|||||||||
4. Finish: hot dip galvanized | |||||||||
5. Customized sizes are available at request.
|
|||||||||
Product Description:
|
|||||||||
The above are typical only, please consult Shanghai Herrajes for further information. | |||||||||
Product Details: | |||||||||

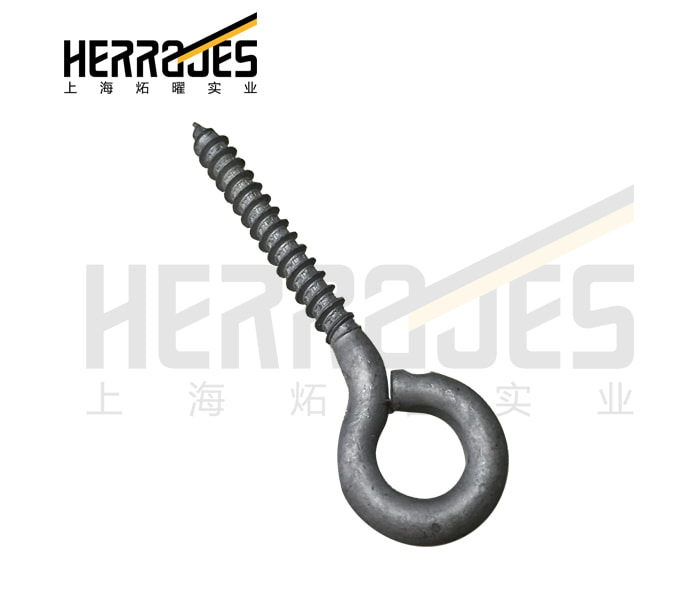

Name: eye screws, lag eyebolts , screw eye bolts , screw eye, hook screws | |||||||||
HS code: 7318190000 | |||||||||
Model: ANSI/ASME | |||||||||
Package: bulk packing; palletized; as required | |||||||||
Trademark: HE, as required | |||||||||
Origin: China | |||||||||
Raw material: carbon steel Q235 | |||||||||
Finish: HDG | |||||||||
ODM&OEM service: yes | |||||||||
Sample: available, FOC | |||||||||
Payment term: T/T, 30% prepayment and 70% balance against B/L | |||||||||
Certificate: ISO | |||||||||
Delivery time: 20-40 days | |||||||||
MOQ: 500kgs | |||||||||
Export term: FOB; CIF | |||||||||
Production capacity pcs/day: 2000 | |||||||||
Minimum tensile strength lbs.: 7000 | |||||||||
Diameter in: 3/8, 1/2, 5/8, 3/4,etc. | |||||||||
Length under eyes: 3, 6, 6 3/4,etc.
Eye size: 7/8×1 1/4,etc. |
