Description

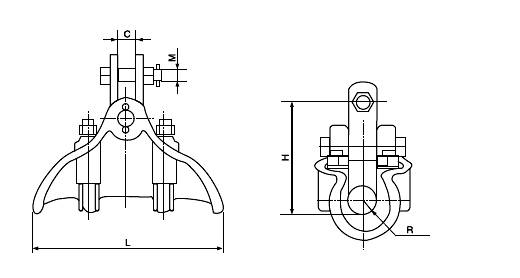

Technical Parameters and Drawings
HE Code | Conductor range | Dimension(mm) | Strength load | ||||
mm | L | H | C | M | R | Kn | |
HEXGB-60 | 19-28 | 250 | 144 | 20 | 16 | 14 | 60 |
HEXGB-80 | 23-33 | 300 | 152 | 20 | 18 | 17 | 90 |
HEXGB-120 | 34-45 | 360 | 160 | 20 | 18 | 24 | 120 |
HEXGB-160 | 37-46 | 360 | 160 | 24 | 24 | 24 | 160 |
Notes:
1. Tolerance: ±5% |
|||||||
2. All dimensions are in MM.
3. Material: aluminum alloy, steel |
|||||||
4. Customized sizes are available at request. | |||||||
Product Description:
The above are typical only, please consult Shanghai Herrajes for further information. |
|||||||
Product Details: | |||||||
Name: CGF suspension clamps hung-down type, earthing clamps | |||||||
HS code: 7616100000 | |||||||
Model: ANSI/ASME | |||||||
Package: bulk packing; palletized; as required | |||||||
Trademark: HE, as required | |||||||
Origin: China | |||||||
Raw material: aluminum alloy, galvanized steel | |||||||
Finish: HDG | |||||||
ODM&OEM service: yes | |||||||
Sample: available, FOC | |||||||
Payment term: T/T, 30% prepayment and 70% balance against B/L | |||||||
Certificate: ISO | |||||||
Delivery time: 20-40 days | |||||||
MOQ: 500kgs | |||||||
Export term: FOB; CIF | |||||||
Production capacity pcs/day: 2000 | |||||||
Strength load Kn: 40 | |||||||
Length MM: 300,etc.
Conductor dia. MM: 23-52 Bolt: M16, M18 |
