Description
Technical Parameters and Drawings
HE Code | Conductor Range(mm) |
HEFN-1 | 15-54 |
HEFN-2 | 12-45 |
HEFN-3 | 15-30 |
HEFN-4 | 15-30 |
Notes:
- Tolerance: ±5%
- All dimensions are in MM except for marked.
- Customized sizes are available at request.
Product Description:
Tags: Zip tie, nail fittings, Nail fixings, Abrazaderas sintéticas, Soportes sintéticos para acometidas

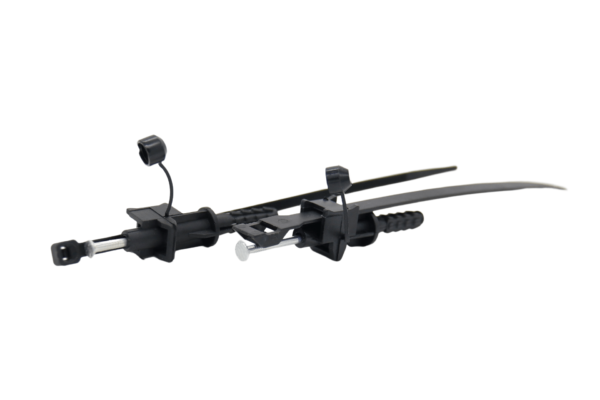

Nail fixing provides supports for connections with nails (self-retaining)
They allow the bundle of conductors to be supported before closing the zip tie, as well as optionally installing a second beam at the bottom of the support by means of an additional bracket.
They are made up of a synthetic support highly resistant to weathering with a device for the installation of a second beam. A zip tie to hold the conductors and one steel nail to fix the device into the pole or wall.
Product Details:
Type of thermoplastic material: Nylon PA66
UV protection: (ASTM G154-16 Cycle 1)
Hardware material: steel zinc plated
High resistance to corrosion
Tensile strength: 0.7KN (min.)
Nail diameter x length: 6 X 80mm
Storage and operating temperature range: -10°C to +60°C
