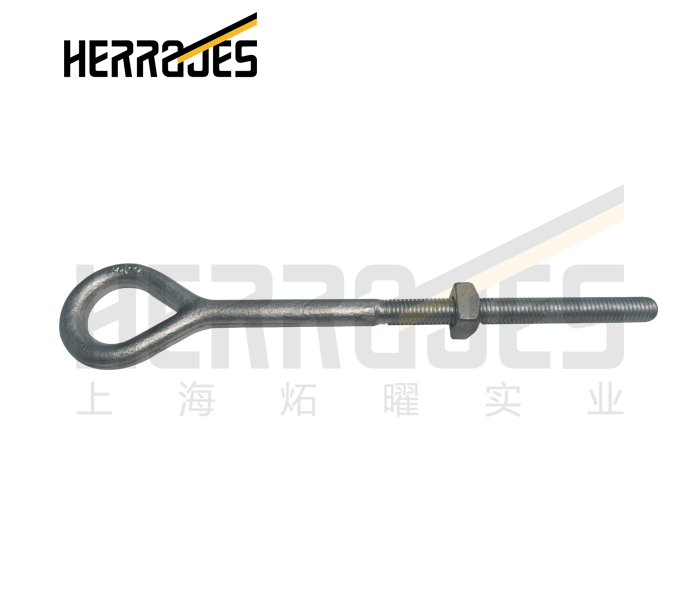

Oval Eye Bolts

Contact on whatsapp

Description

Technical Parameters and Drawings

HE Code Dimensions Dia. ΦD Wt. kg
A B C E
EBO1/2-8 8” (203.2) 4” (101.6) 1″(25.4) 1 1/2”(38.1) 1/2″(12.7) 0.35
EBO1/2-12 12” (304.8) 6” (152.4) 1″(25.4) 1 1/2”(38.1) 1/2″(12.7) 0.45
EBO5/8-6 6” (152.4) 3″(76) 1 1/2”(38.1) 2″(50) 5/8″(16) 0.45
EBO5/8-8 8” (203.2) 4” (101.6) 1 1/2”(38.1) 2″(50) 5/8″(16) 0.54
EBO5/8-9 9″(228.6) 4” (101.6) 1 1/2”(38.1) 2″(50) 5/8″(16) 0.56
EBO5/8-10 10” (254.0) 4” (101.6) 1 1/2”(38.1) 2″(50) 5/8″(16) 0.68
EBO5/8-12 12” (304.8) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 0.76
EBO5/8-14 14” (355.6) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 0.84
EBO5/8-16 16” (406.4) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 0.93
EBO5/8-18 18” (457.2) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 1.01
EBO5/8-20 20” (508) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 1.13
EBO5/8-22 22” (558.8) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 1.22
EBO5/8-24 24” (609.6) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 1.32
EBO5/8-26 26″(660.4) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 1.36
EBO5/8-30 30″(762) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 1.43
EBO5/8-36 36″(914.4) 6” (152.4) 1 1/2”(38.1) 2″(50) 5/8″(16) 1.61
EBO3/4-4 4” (101.6) 4” (101.6) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 0.39
EBO3/4-8 8” (203.2) 4” (101.6) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 0.82
EBO3/4-10 10” (254.0) 4” (101.6) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 1.02
EBO3/4-12 12” (304.8) 6” (152.4) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 1.13
EBO3/4-14 14” (355.6) 6” (152.4) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 1.25
EBO3/4-16 16” (406.4) 6” (152.4) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 1.34
EBO3/4-18 18” (457.2) 6” (152.4) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 1.45
EBO3/4-20 20” (508) 6” (152.4) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 1.50
EBO3/4-22 22” (558.8) 6” (152.4) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 1.56
EBO3/4-24 24” (609.6) 6” (152.4) 1 1/2”(38.1) 2″(50) 3/4″(19.5) 1.63

Notes:

1. Tolerance: ±5%

2. All dimensions are in inch except for marked.

3. Material: carbon steel

4. Finish: hot dip galvanized
5. Customized sizes are available at request.







Product Description:

Oval eyebolts are produce to guy,deadend and attach clevises on wood or concrete poles. Oval eye bolts are also used in the case of specialty needs of suspension insulators and pole line hardware.
Bolts are made of carbon steel SAE 1010 to 1020, hot dip galvanized to ASTM A 153, tested according standard ANSI C-135.4.
Ovaleye bolts can be assembled with one square nut.
Bolts have cone points at the end for easy installation as that users drive the bolts without damaging the threads.





The above are typical only, please consult Shanghai Herrajes for further information.



Product Details:
Name: oval eye bolt, double arming eye bolt, eye stay rods
HS code: 7318151001
Model: CSA, ANSI/ASME
Package: bulk packing; palletized; as required
Trademark: HE, as required
Origin: China
Raw material: carbon steel Q235
Finish: HDG
ODM&OEM service: yes
Sample: available, FOC
Payment term: T/T, 30% prepayment and 70% balance against B/L
Certificate: ISO
Delivery time: 20-40 days
MOQ: 500kgs
Export term: FOB; CIF
Production capacity pcs/day: 2000
Minimum tensile strength KN: 35
Overall length in: 4 – 36
Bolt dia. in: 1/2, 5/8, 3/4,etc.
