Description
Technical Parameters and Drawings
| HE Code | d1 | d2 | d3 | d4 | h | e | D | WT(kg) |
| HEEN-M6 | M6 | 17 | 28 | 16 | 30 | 8 | 6 | 0.023 |
| HEEN-M8 | M8 | 20 | 35 | 20 | 35 | 8 | 8 | 0.043 |
| HEEN-M10 | M10 | 25 | 45 | 25 | 44 | 10 | 12 | 0.080 |
| HEEN-M12 | M12 | 29 | 53 | 30 | 52 | 12 | 10 | 0.138 |
| HEEN-M14 | M14 | 30 | 53 | 30 | 52 | 14 | 12 | 0.126 |
| HEEN-M16 | M16 | 35 | 63 | 35 | 62 | 16 | 14 | 0.234 |
| HEEN-M18 | M18 | 37 | 67 | 37 | 66 | 17 | 15 | 0.282 |
| HEEN-M20 | M20 | 40 | 71 | 40 | 70 | 18 | 16 | 0.340 |
| HEEN-M24 | M24 | 47 | 87 | 48 | 87 | 18 | 20 | 0.558 |
| HEEN-M30 | M30 | 55 | 104 | 54 | 104 | 30 | 25 | 1.053 |
| HEEN-M36 | M36 | 75 | 126 | 70 | 126 | 30 | 28 | 2.080 |
Notes:
| 1. Tolerance: ±5%
2. Producing standard: DIN582 |
|
| 3. All dimensions are in inch except for marked. | |
| 4. Finish: hot dip galvanized or Zinc plated | |
| 5. Customized sizes are available at request.

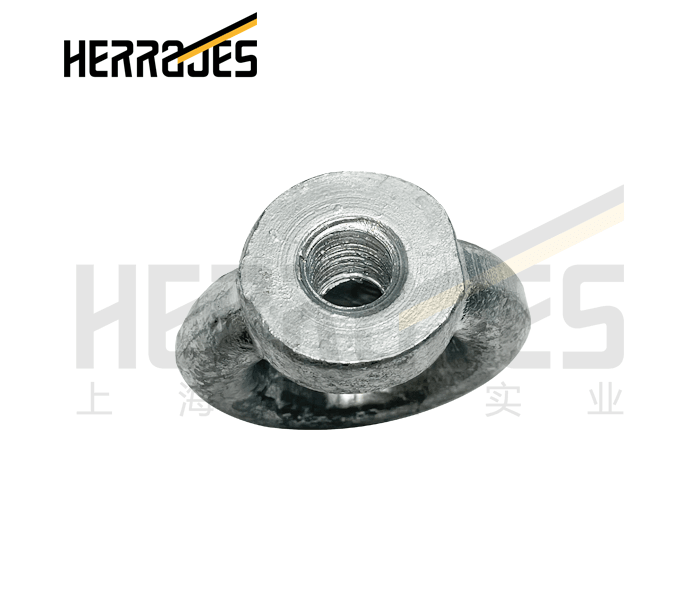

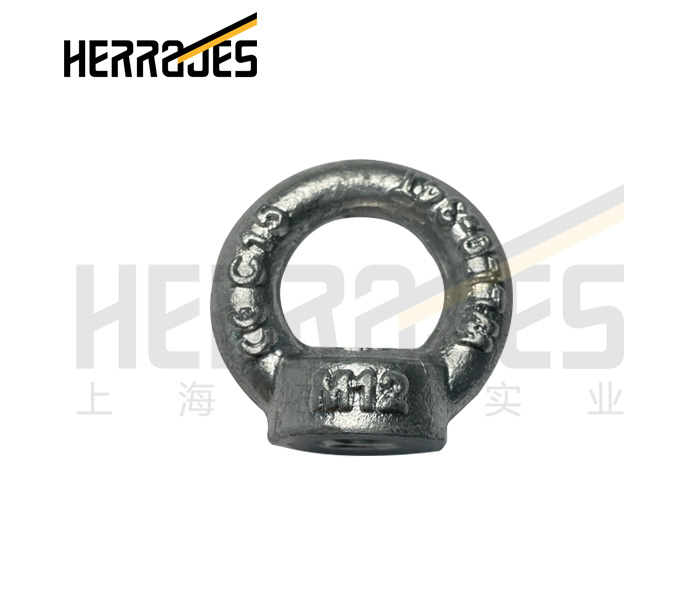

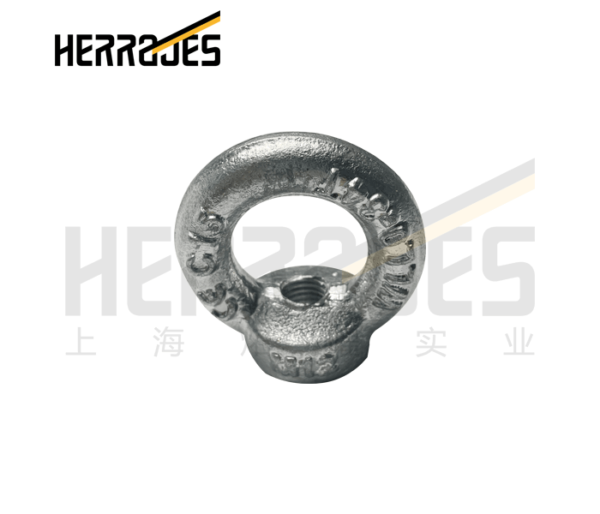

Product Description: Eye nuts are typically used in conjunction with screws, bolts or threaded rods. The lifting ring nut is fixed by the inner thread, and the lifting round nut and the screw of the same specification can be connected together.
The lifting round nut is a part that tightly connects the mechanical equipment. Most of it is used in conjunction with the external thread to lift various equipment. It is a commonly used fixed pendant in engineering, such as molds, chassis, motors, etc.
The above are typical only, please consult Shanghai Herrajes for further information
|
|
| Product Details: | |
| Name: round eyenuts, lifting eye nuts, bow nuts | |
| HS code: 73269090 | |
| Model: DIN582 | |
| Package: bulk packing; palletized; as required | |
| Trademark: HE, as required | |
| Origin: China | |
| Raw material: carbon steel | |
| Finish: hot dip galvanized | |
| ODM&OEM service: yes | |
| Sample: available, FOC | |
| Payment term: T/T, 30% prepayment and 70% balance against B/L | |
| Certificate: ISO | |
| Delivery time: 20-40 days | |
| MOQ: 500kgs | |
| Export term: FOB; CIF | |
| Production capacity pcs/day: 2000 | |
