Thimble Eyenuts

Contact on whatsapp

Description

Technical Parameters and Drawings

HE Code Wt.
kg
ENT5/8 0.354







Notes:

1. Tolerance: ±5%

2. Producing standard: ANSI C 135.5

3. All dimensions are in MM except for marked.
4. Finish: hot dip galvanized per ASTM A153
5. Customized sizes are available at request.







Product Description:

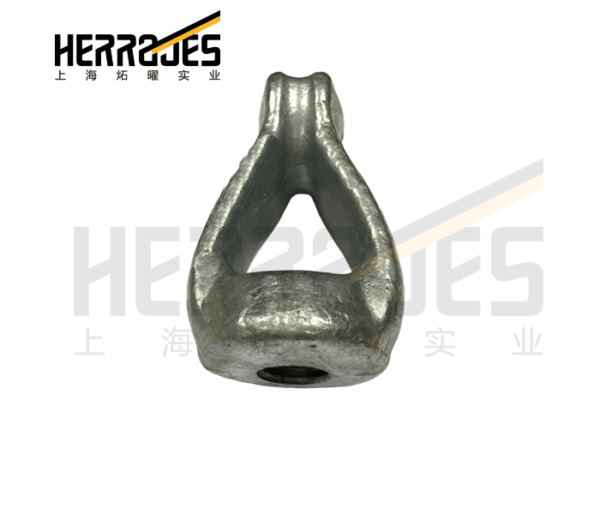

Thimble eye nuts are produced to tie to through bolts or threaded end of thimbleye bolts for straight-away head guys, manufactured for high strength applications.
Eye nuts are suitable for diameter 5/8″ rods or bolts.
The material is drop-forged galvanized steel.

Diameter 3/4″ and 1″ share the same dates.







The above are typical only, please consult Shanghai Herrajes for further information.



Product Details:
Name: thimble eyenuts, thimble eye nuts, single eyenuts, thimble eyes, single eye nuts
HS code: 7326
Model: ANSI C 135.5
Package: bulk packing; palletized; as required
Trademark: HE, as required
Origin: China
Raw material: carbon steel SAE 1020, ductile iron
Finish: hot dip galvanized
ODM&OEM service: yes
Sample: available, FOC
Payment term: T/T, 30% prepayment and 70% balance against B/L
Certificate: ISO
Delivery time: 20-40 days
MOQ: 500kgs
Export term: FOB; CIF
Production capacity pcs/day: 2000
Minimum tensile strength lbs.: 7800
Eye type: thimble
For bolt dia. in: 5/8, 3/4, 1,etc.

Weight per each kg: 0.354
