Four-way Adjustable Pole Bands

Contact on whatsapp

Description

Technical Parameters and Drawings



HE Code Description Dimensions Wt.
Steel size For pole dia. Rod Square hole kg
PBF-1 4 way pole band 5/16″×3″ 6″ – 10 1/2″ 3/4″×6″ 9/16″ 7.144
PBF-2 4 way pole band 1/4″×4″ 7 1/2″ – 12″ 3/4″×6″ 9/16″ 5.634
PBF-3 4 way pole band 1/4″×4″ 8″ – 12″ 3/4″×6″ 9/16″ 6.074
PBF-4 4 way pole band 1/4″×4″ 11″ – 16″ 3/4″×6″ 9/16″ 7.915
PBF-5 4 way pole band 1/4″×4″ 9 1/2″ – 16″ 3/4″×8″ 9/16″ 12.791





Notes:

1. Tolerance: ±5%
2. All dimensions are in Inch except for marked.
3. Finish: steel hot dip galvanized per ASTM A153
4. Customized sizes are available at request.









Product Description:

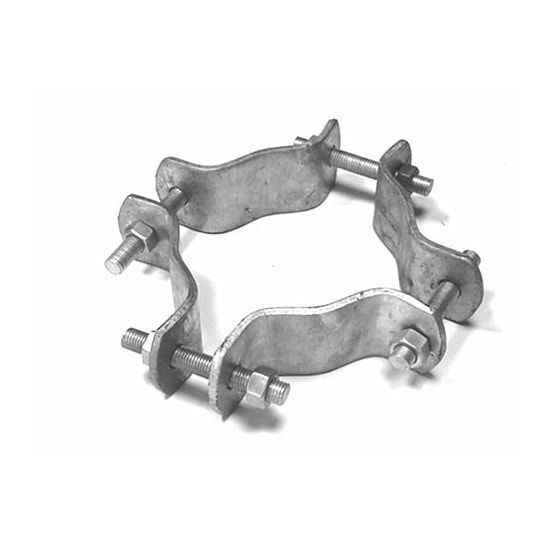

4-way adjustable pole bands, used on wood  and concrete poles, work as a shield wire support and anti-split device, designed for conductor and guy attachments, fitting for various line angle attachments .
The band sections are provided with a bonding hole to facilitate grounding.
Square holes in each band section are for accommodation either lag screws or a ground connector.
Pole bands are produced in carbon steel SAE 1010 to 1020, hot dip galvanized to ASTM A-153.
Pole bands are supplied with 4 double arming bolts and 16 square nuts, shipped unassembled.
9/16″ square hole for 1/2″ lag screw.



The above are typical only, please consult Shanghai Herrajes for further information.



Product Details:
Name: 4 way adjustable pole bands, heavy pole bands, pole adjustable heavy style, adjustable pole bands
HS code: 7326909000
Model: four way
Package: bulk packing; palletized; as required
Trademark: HE, as required
Origin: China
Raw material: ASTM A536
Finish: hot dip galvanized
ODM&OEM service: yes
Sample: available, FOC
Payment term: T/T, 30% prepayment and 70% balance against B/L
Certificate: ISO
Delivery time: 20-40 days
MOQ: 500kgs
Export term: FOB; CIF
Production capacity pcs/day: 2000

Lag hole dia. In: 9/16
